Description

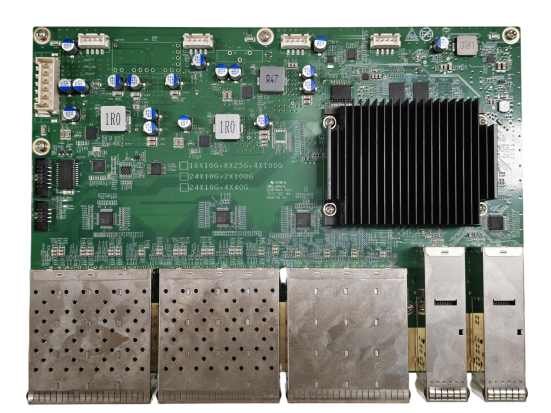

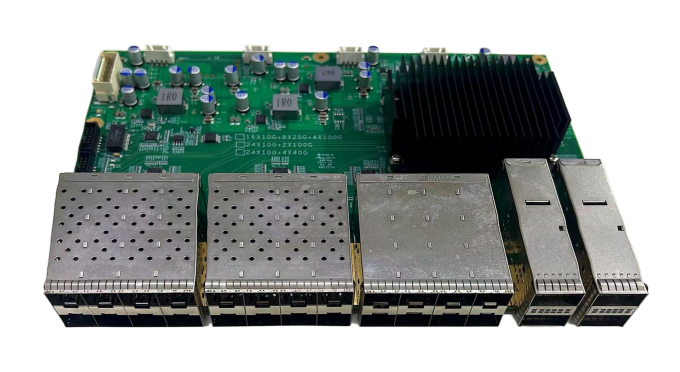

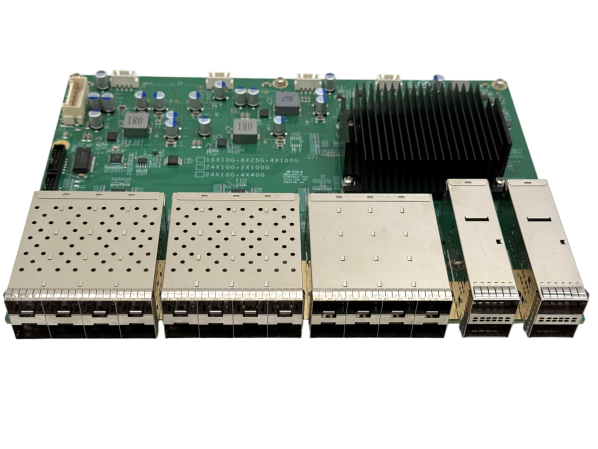

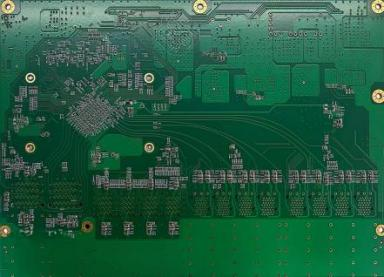

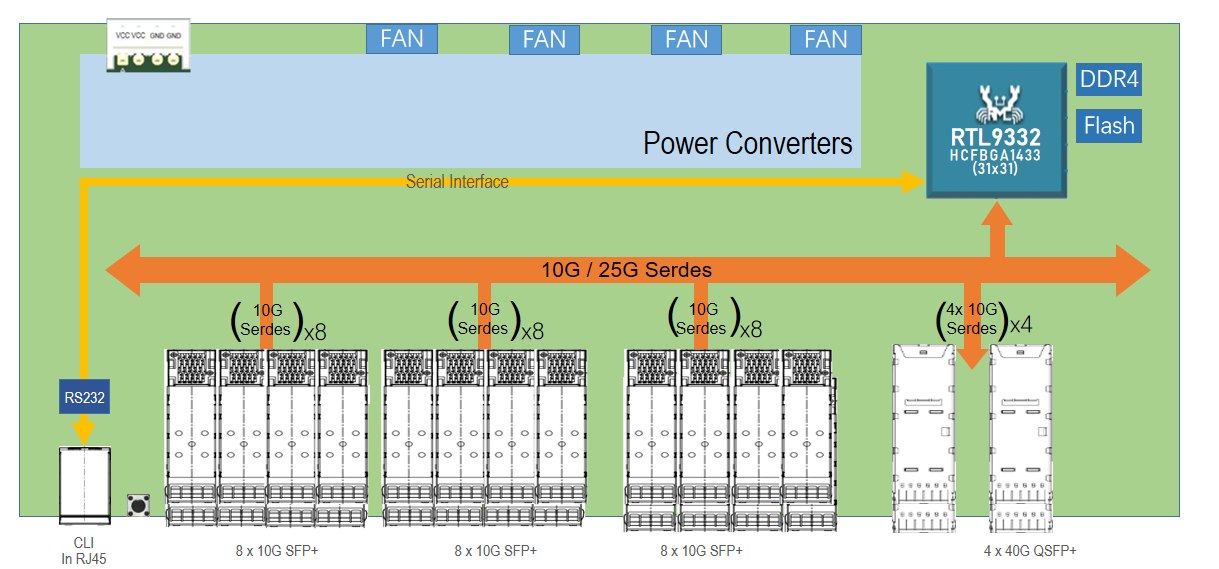

MSX-9424FX is a 3-Layer managed Ethernet switch based on RTL9332T chip, including 24x10G fiber ports via SFP+ sockets and 4x40G(or 2x100G) via QSFP28 sockets，Two-port-rate Variant with common Hardware Design are available,support 40G and 100G uplink.
Turnkey custom Switch Solutions
We provide comprehensive, custom-tailored hardware and software development services for managed switches to meet exact client specifications.
Complete Turnkey Package: Full delivery of hardware and software design files, including schematic diagrams and BOM (Bill of Materials) for qualified-volume partners.
Flexible Software Customization: Access to partial custom software packages and compilation environments via software license options.
Switch Chip Comparisons
|
RTL9332 |
BCM56170 |
BCM56275 |
BCM56370 |
MRVL 98DX8332 |
Centec CTC7148 |
Centec CTC7132 |
|
|
Process |
22nm |
28nm |
16nm |
16nm |
28nm |
32nm |
28nm |
|
Package |
FBGA1433 31x31mm^2 |
31x31mm^2 |
29x29mm^2 |
31x31mm^2 |
24x20mm^2 |
FCPBGA 1295 |
FCPBGA 1143 31x31mm^2 |
|
Power |
42.6W ~48.8W |
23W@25C,33W@110C |
70W@110C |
70W@110C |
25W@110C |
Typical 30W |
22.65W@65C 41W@110C |
|
Total Bandwidth |
440G |
340G |
200G |
560G |
320G |
640G |
440G |
|
CPU |
ARM A55,Quad Core 1.2GHz |
ARM A9 1.25GHz (Single Core) |
ARM A72 1.7GHz |
ARM A72 1.7GHz |
ARM v7,Dual Core 800MHz |
External |
ARM A53 Dual Core 1.2GHz |
|
PCIe Gen 3 |
PCIe Gen 2 |
PCIe Gen 3 |
PCIe Gen 2 |
NA |
PCIe Gen 2 |
||
|
L1 cache:I/D=32KB/32KB L2 cache:512KB |
L0 cache:I/D=4KB/4KB L1 cache:I/D=32KB/32KB L2 cache:?KB |
NA |
L1 cache:I/D=32KB/32KB L2 cache:256KB |
||||
|
DDR4-2133,32bit+4bit ECC,8GB |
ECC 2GB DDR4 |
DDR4 32bit+4bit ECC |
DDR3-1600 32bit |
NA |
DDR3/4 16bit+8bit ECC |
||
|
Parallel NAND 1Gb |
Parallel Flash |
Parallel NOR and NAND |
NA |
||||
|
SPI NAND 8GB SPI NOR 64MB |
Serial Flash |
serial NOR Flash |
SPI Flash |
NA |
SPI/eMMC/SD |
||
|
Trust Zone |
Trust Zone |
NA |
|||||
|
Encryption |
PKA |
PKA |
NA |
Secure Boot |
|||
|
1*1G OOB |
2*1G OOB |
2*1G OOB |
2*1G OOB |
1*1G OOB |
NA |
2*1G OOB |
|
|
3 *UART |
2 *UART |
2 *UART |
2 *UART |
2 *UART |
NA |
3*UART |
Specifications
|
Number of Ports |
24xSFP+ Ethernet fiber ports with non-blocking wire-speed performance 10G,2x100G or 4x40G uplink rate adjustable via S/W |
|
Operating temperature |
-20 to +70°C |
|
Weight |
389g / 13.7oz |
|
RohS |
Compliant |
|
Implementation |
On-boardsolution:MSX-908XGE provides 24x10G SFP+4x100G QSFP28 |
|
On-board Memory |
32MB packet memory |
|
Network Management |
SNMP v1/v2c/v3;Web GUI and command line interface (CLI) |
|
Serial Port |
1 RS-232 port for host interface,115200/N/8/1 |
|
Indicator lights |
LEDs for each port indicate link status and speed |
|
Dimensions |
250.5mm x 176mm |
|
Input voltage |
12VDC |
|
Power consumption |
<30W |

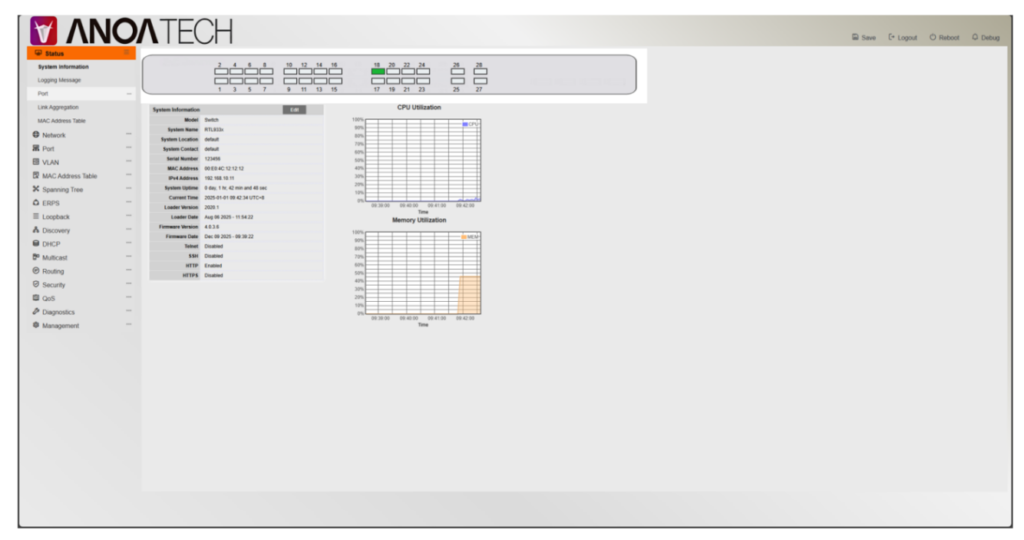

WEB Configure
Feature
|
Function Category |
Specific Functions |
|
System Status |
SystemInformation,Logging Message |
|
Network Configuration |
IP Address,DNS,System Time |
|
Port |
Port Setting,Port Exception Protection,Jumbo Frame Configuration port Isolation |
|
VLAN Function |
CreateVLAN,VLANConfiguratioin,Member Configuration,Port Configuration |
|
MAC Address Table |
Dynamic/Static MAC Table,MAC Address Filter Table |
|
DHCP |
Function Configuration,Address Pool,VLAN Interface Address Group,Client List/Binding Table |
|
Routing |
IPv4/IPv6 Interface,Routing,ARP |
|
Security |
AAA Authentication,DoS Attack Prevention,ACL (MAC/IPv4/IPv6) |
|
QoS |
Function Configuration,Queue Scheduling,CoS/DSCP/IP Priority Mapping |
|
Device Diagnosis |
Ping,Traceroute,Optical Module Information,Mirroring Function,Remote Server Configuration |
|
ACL |
MAC ACL Configuration,MAC ACE Configuration,IPv4 ACLConfiguration,IPv4 ACE Configuration,IPv6 ACLConfiguration,IPv6ACE Configuration,ACL Binding |
|
Spanning Tree |
Property,Port Setting,MSTinstance,MST Port Setting,Statistics |
|
Discovery |
MED Network Policy,MED Port Setting,Local Information,Neighbor,Statistics |
|
SNMP |
View,Group,Community,User,Engine ID,Trap Event,Notification |
