Description

Our MSQ9624 is an High cost-effective management Ethernet switch, with maximium of 24*2.5G Base-T ports and 6*10G SFP+ optical ports .  It supports Layer 3 static routing.  The total switching capacity is as higher as 240Gbps, can handle a large number of data forwarding.

Product Highlight :

  • Flexible Port Configuration :
  • 24*10/100M/1000M/2.5G
  • Base-T+6*10G SFP+
  • Support L3 Management
  • Dual Power Mode,
  • and Low Power Consumption
  • Standard 19” 1U rack mount design
  • Support CLI and Web Management
  • Add-on Features :
  • POE/PSE, Fan Control, GPIO
  • Tailor-made or Turnkey solution available

Redundant Power Supply

It supports dual power mode of 1 way 100 – 240V AC input and 2 ways 36 – 60V DC input (optional).  It is flexible for the use in wide range of industrial environment of power supplies.



User Friendly Web Management

The MSQ9624 provides an user friendly web management system.  The L3 management features can be easy accessed and configured through an Ethernet port.



Data Input and Output of Alarm System

There are two sets of data output, which can be set to alarm the output of switch power loss, port loss and port POE loss.  There are two sets of data input, which can be used to detect the alarm signals of external alarms such as infrared detectors. Data inputs and outputs can be set on the web administration page.



Excellent Protection Ability, Able to Adapt to Harsh Environment

The use of industrial grade chipset and components allow the device working at temperature -40℃ to 75℃ without data loss.  Lightning protection and electrostatic protection designs to meet the EMI and EMS international standards.

Hardware Specifications

Item Detail
Ethernet Port 24 x 2.5G Base-T RJ45
Optical Port 6 x SFP+

(can be modified to 6 x 10G Base-X RJ45 by customize)

Control Port 1 x RJ45-R232 Serial Port (115200,8,N,1)
OOB Port 1 x 10/100 Base-TX RJ45 (only to web management)
Init Key Press to Restart

Press and Hold >5s to Default Recovery

Power Dual Mode

1 x AC 100~240V 50/60Hz

2 x DC DC36~60V

Power Consumption 30W
Data (Alarm)

Input / Output

2 x Digital Input for exteral alarm

2 x Digital Output for

the switch power failure

cable link down & PoE link off

Signal Type : normal-open or normal-closed from relay

Standard IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3Z,

IEEE802.3X,IEEE802.1Q,IEEE802.1p,

IEEE802.3ad,IEEE802.1D,IEEE802.1X

Exchange Capacity 240Gbps / non-blocking
Package Conversion Rate 95.2Mpps@64bytes
Exchange Mode Store-and-Forward
Package Data Cache 12Mbit
MAC Address List 16k
Rectangular Layout 12k bytes
EMI FCC Part 15, CISPR(EN55022) Class A
EMS Surge level-4 execute : IEC61000-4-5

ESD level-4 execute : IEC61000-4-2

RS level-4 execute :IEC61000-4-3

EFT level-4 execute : IEC61000-4-4

CS level-3 execute : IEC61000-4-6

M/S level-5 execute: IEC61000-4-8

Operating Temperature -40-75℃
Storage Temperature -40-85℃

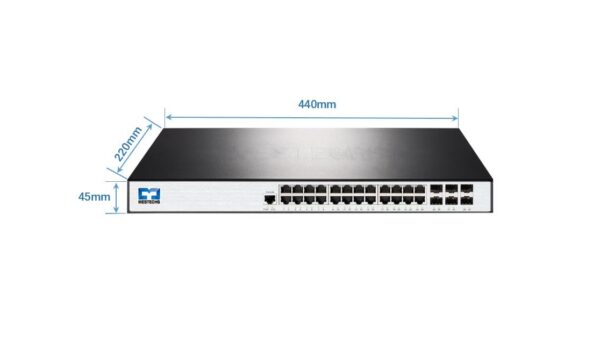

Size (L×W×H) 440mm × 220mm × 45mm
Weight 5.5kg
Identification CE ,FCC,ROHS

Software specifications

  • Support 802.1p COS/DSCP/TOS priority
  • Support IGMP Snooping
  • Support MLD-snooping
  • Multicast VLAN Registration(MVR)
  • Supports IP , MAC, port, VLAN binding combinations
  • Support IPV4 static route setup
  • Support static ARP Add,delete,burn-in time sutup/check
  • Support group-brocasting PIM,IGMPV1/V2/V3, MLD(IPV4)
  • Support DHCP client
  • Support relay reperter , DHCP snooping
  • Support duplex trandfer check mechanism

Order Information

Product Description                                                                                                     Order Code

24*2.5G Base-T with 6 10G SFP+ L3 management Ethernet switch                             MSQ9624
